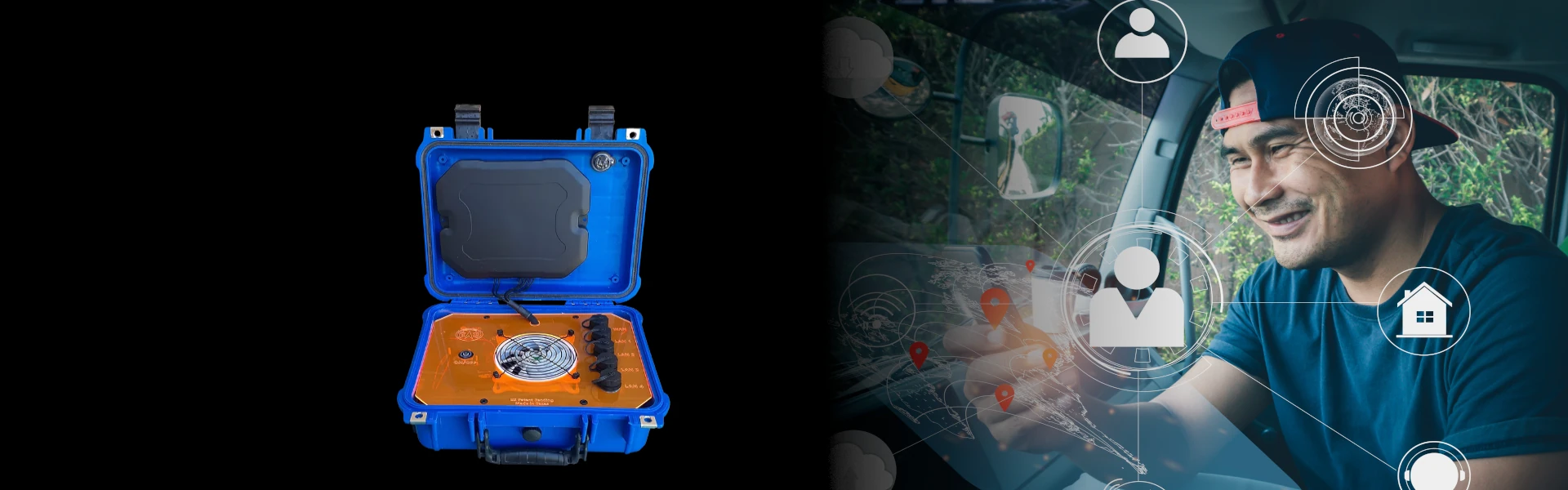

Protective, Waterproof & Shockproof
Outer: 13.37″ x 11.62″ x 6″ Inner: 11.81″ x 8.87″ x 5.18″
Waterproof protection for up to 1 meter fully submerged with a rubber gasket lining.
Lockable Fittings TSA Approved.
Stackable Design
Pressure equalization valve
12V 3A Power Supply Adapter
Waterproof GPS Active Antenna 28dB Gain, 3-5VDC
120mm Silent Green LED Case Fan
125 Volt 15 Amp Flanged Inlet, Power Inlet Socket with Waterproof Cap
4 x RJ45 Cable Connectors, with Shielding Cable Coupler-CAT5E
2 x Panorama 600-6000MHz Desk Mount 2×2 MiMo 4G/5G Antenna
3 x Dual Band Bluetooth-Wi-Fi 2.4GHz 5GHz 5.8GHz 6dBi MIMO RP-SMA Male Antenna
VELCRO Brand Heavy Duty Fasteners retain components for service and maintenance ease.
ACCEPTS OTHER CELLULAR MODEM PRODUCTS LIKE DIGI, SIERRA WIRELESS, PEPWAVE, etc.

FIRMWARE CUSTOMISATION

Operating system

RutOS (OpenWrt based Linux OS)

 Supported languages

Busybox shell, Lua, C, C++, and Python, Java in Package manager

 Development tools

SDK package with build environment provided

 GPL customization

You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

 Package Manager

The Package Manager is a service used to install additional software on the device

Location Tracking

GNSS

GPS, GLONASS, BeiDou, Galileo and QZSS

Coordinates

GNSS coordinates via WebUI, SMS, TAVL, RMS

NMEA

NMEA 0183

NTRIP

NTRIP protocol (Networked Transport of RTCM via Internet Protocol)

 Server software

Supported server software TAVL, RMS

 Geofencing

Configurable multiple geofence zones

USB

Data rate

USB 2.0 Applications

Samba share, USB-to-serial

External devices
Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter

Storage formats

FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output

Input

1 x Configurable digital Input, 0 – 6 V detected as logic low, 8 – 50 V detected as logic high

 Output

1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA

Events

Email, RMS, SMS

I/O juggler
Allows to set certain I/O conditions to initiate event

Power
Connector 4-pin industrial DC power socket

Input voltage range
9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max

PoE (passive)

Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 50 VDC

Power consumption
Idle: <5 W, Max: <18 W

Physical Interfaces
Ethernet
5 x RJ45 ports, 10/100/1000 Mbps

I/O’s
1 x Digital Input, 1 x Digital Output on 4-pin power connector

Status LEDs
4 x WAN type, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x Ethernet port status, 1 x Power, 2 x 2.4G and 5G Wi-Fi

SIM
2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V

Ease of Use with Existing Technology:
Cradlepoint utilizes well-established cellular networks, which means the technology is mature and widely supported. No apps are needed. One button activation is all there is. SSID and password is on the case’s handle tag.

Instant Service:
Unlike Starlink, which may have wait times for equipment and activation, cellular service can be activated quickly as long as there some coverage. Our cases arrive with the sims installed and activated. They work right out of the box. This is a significant advantage for users who need internet asap.

Plan Flexibility:
All of our Verizon data plans are month to month and can be changed at any time. Customers can also opt to use their own carrier and data plans if they wish.

Network Reliability:
Relying on established cellular towers can offer more consistent service in certain areas compared to the relatively new and expanding satellite network of Starlink, which might experience initial teething problems like signal intermittency in extreme weather or due to satellite repositioning.

Low Latency:
Compared to most ISP providers, our system has significantly lower latency, with an average latency between 20-30 ms as previously indicated.

Where Connectivity is Critical:

Large Construction Projects:
Support extensive project management, real-time video conferencing, and remote equipment monitoring with a high number of devices and heavy data usage.

Corporate Retreats and Events:
Provide high-speed, reliable internet for large groups during outdoor corporate events, retreats, or training sessions.

Advanced Emergency Response and Public Safety Mobile Command Centers:
Enable comprehensive communication and data operations for emergency management, including live video feeds, data analytics, and coordination tools.

Disaster Recovery Operations:
Provide robust connectivity for large teams working in disaster zones, ensuring seamless communication and data transfer.

High-Capacity Transportation,Fleet Management, and Connected Public Transit:
Offer high-speed internet for passengers, real-time fleet management, and operational data collection on buses, trains, and ferries.

Emergency Vehicles:
Equip ambulances, fire trucks, and police vehicles with reliable internet for real-time data access, video streaming, and communication with central command.

High-Performance Field Research and Environmental Monitoring:
Support large-scale data collection, transmission, and communication needs for scientific research teams in remote or extreme environments.

Environmental Monitoring Projects:
Enable real-time data transmission from multiple sensors and devices deployed in large environmental monitoring networks.

Large-Scale Pop-Up Networks for Major Events and Festivals:
Support high-volume point-of-sale systems, customer Wi-Fi, live streaming, and operational communications during large-scale events.

Temporary Retail Outlets:
Provide reliable, high-speed internet for pop-up stores and temporary business operations with significant data demands.

Advanced Outdoor Recreation and RV Connectivity:
Offer a robust internet connection for families or groups traveling in RVs who require high-bandwidth internet for work, entertainment, and remote learning.

Premium Campsite Management:
Provide high-speed internet and network services for luxury camping sites and outdoor resorts.

IoT and Automation:
Support extensive IoT devices, real-time data analytics, and automated systems for large-scale precision agriculture. Mobile Health Clinics:
Support advanced telemedicine applications, electronic health records, and live video consultations for mobile medical units.

Mobile Learning Centers:
Enable high-speed internet and digital learning tools for mobile classrooms or educational outreach programs in underserved areas.

IoT and Automation:
Support extensive IoT devices, real-time data analytics, and automated systems for large-scale precision agriculture.

Farm Network Infrastructure:
Provide a reliable network backbone for extensive farm operations requiring high-bandwidth internet for multiple applications.

Live Event Broadcasting:
Ensure reliable high-speed connections for live TV and radio broadcasting from remote or outdoor locations.

Field Journalism:
Support high-definition video uploads, live reporting, and real-time communication for news teams in the field.

Advanced Educational Expeditions and Mobile Learning:
Provide high-speed internet for students and teachers on educational trips requiring access to online resources, video conferencing, and interactive tools.

Mobile Digital Labs:
Support e-learning and digital literacy programs in remote or underserved communities with high-bandwidth requirements.
