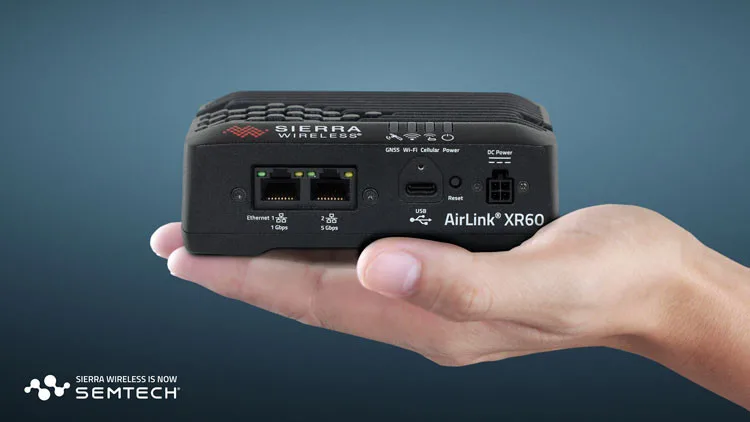

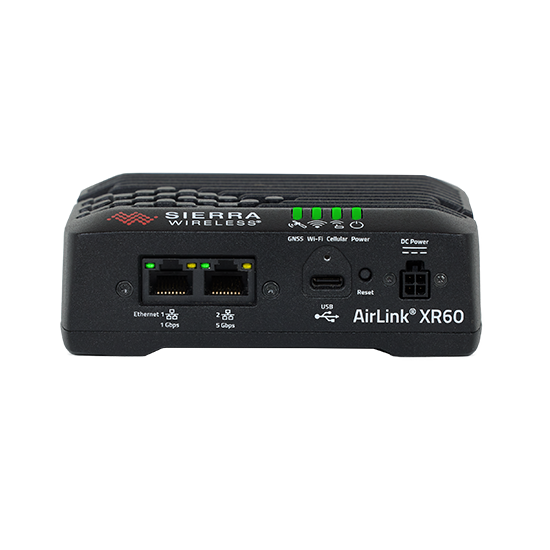

Semtech AirLink® XR60
Ultra-Compact Rugged 5G Router
The ultra-compact and highly ruggedized AirLink® XR60 delivers high performance 5G and Wi-Fi 6 connectivity to space-limited and harsh environments — from tight industrial enclosures to fast-moving vehicles.
With advanced networking capabilities, private network support and edge computing capabilities, the XR60 future proofs your connectivity and accelerates your digital transformation.
The XR60 router comes with 5 years of hardware warranty, technical support and remote management capabilities through AirLink Complete.
Five times faster and two times smaller than performance 4G routers*, the XR60 seamlessly fits into your existing tight industrial enclosures and densely packed vehicle interiors.
*vs AirLink MP70 performance router
Rugged Design
The XR60 boasts unique power redundancy capabilities and a highly rugged design to thrive in harsh industrial and mobile environments (IP64, MIL-STD, overvoltage and brownout protection).
Future-Proof Solution
This new-gen solution combines 5G, advanced networking features and 5 years of services to future proof your investment.
5G
2×2 MIMO Wi-Fi 6 (Optional)
Single Serial / Single Ethernet (1 Gbps) or Dual Ethernet (1 Gbps + 5 Gbps)
Dual-Band GNSS
IP64 Rated
AirLink OS
5 years of AirLink Complete
All Around Performance
5G, Wi-Fi 6 and gigabit ethernet and USB-C technologies synergize to deliver optimal performance with minimal latency, taking your broadband experience to a whole new level.
Rugged Design
The XR60 boasts unique power redundancy capabilities and a highly rugged design to thrive in harsh industrial and mobile environments (IP64, MIL-STD, overvoltage and brownout protection).
Future Proof Solution
This new-gen solution combines 5G, advanced networking features and 5 years of services to future proof your investment.
AirLink Complete
Maximize your router investment with AirLink Complete — a comprehensive service package designed to empower you with the tools and support necessary to secure, optimize and effortlessly scale your router deployments.
AirLink Complete subscriptions include*:
- AirLink Management Service (ALMS) for remote device and security management
- Direct access to expert technical support
- Extended hardware warranty**
*With active subscription. 5-year subscription included with the router purchase.
**Up to 5 years maximum.
Connecting your critical assets goes beyond deploying a router. It requires real-time visibility, robust security and proactive management of large-scale networks from multiple locations. Our comprehensive suite of Airlink router remote management services is designed to give you full visibility and control over your network.
|
KEY FEATURES
|
|
|---|---|
|
Cellular Radios
|
5G
|
|
Wi-Fi
|
2×2 MIMO Wi-Fi 6 (Optional)
|
|
Ethernet
|
1 x Ethernet RJ45 (1 Gbps) – Single Serial/Single Ethernet variant
2 x Ethernet RJ45 (1×1 Gbps + 1×5 Gbps) – Dual Ethernet variant |
|
Serial
|
Dual RS-232/485 (Serial/Ethernet variant)
|
|
GNSS
|
Dual-band 40 Channel GNSS
|
|
CAN
|
–
|
|
I/O
|
1 GPIO
|
|
USB
|
USB 3.2 Gen 1 Type-C® with power delivery and 5 Gbps LAN networking
|
|
Bluetooth
|
–
|
|
IP Rating
|
Sealed Aluminum Housing (IP64 Rated)
|
|
Services
|
AirLink Complete (5 years included when registered in ALMS)
|
|
Operating System
|
AirLink OS
|
|
Management System
|
AirLink Management Service (ALMS)
|
|
Region
|
Global
|
|---|
|
CELLULAR
|
|
|---|---|
|
Technology
|
5G
|
|
Peak Downlink (Theoretical)
|
2800 Mbps
|
|
Peak Uplink (Theoretical)
|
900 Mbps
|
|
Category
|
5G
|
|
Region
|
Global
|
|
Radio
|
EM9291
|
|
MIMO
|
4×4
|
|
RF Connectors
|
SMA
|
|
SIM
|
Dual SIM (Nano-4FF)
|
*SA downlink only **Downlink only
|
WIRELESS CERTIFICATION
|
|
|---|---|
|
Regulatory
|
FCC, IC/ISED, PTCRB, GCF, CE1, RED1, RCM
|
|
Carrier
|
AT&T, FirstNet® Trusted2, T-Mobile, T-Priority, Verizon, Telus, Southern Linc, CBRS, C-BandPlanned: Rogers, Bell, Telstra
|
|
Public Safety
|
FirstNet® Trusted2, T-Priority
|
|
Part Numbers
|
1105099 XR60 Dual Ethernet (1 Gbps + 5 Gbps)
1105159 XR60 Dual Ethernet (1 Gbps + 5 Gbps) with Wi-Fi 1105160 XR60 Single Serial, Single Ethernet (1 Gbps) 1105161 XR60 Single Serial, Single Ethernet (1 Gbps) with Wi-Fi TAA Part Numbers: 1105232 XR60 TAA Dual Ethernet (1 Gbps + 5 Gbps) 1105233 XR60 TAA Dual Ethernet (1 Gbps + 5 Gbps) with Wi-Fi 1105234 XR60 TAA Single Serial, Single Ethernet (1 Gbps) 1105235 XR60 TAA Single Serial, Single Ethernet (1 Gbps) with Wi-Fi |
1TAA Part Numbers do not have the CE/RED certification
2Requires device management via AirLink Management Service (ALMS)
|
WI-FI
|
|
|---|---|
|
Wi-Fi Standard
|
Wi-Fi 6
|
|
Access Point
|
Dual (2.4 & 5GHz)
|
|
Client (Depot/WAN)
|
Yes
|
|
Client & AP
|
Yes
|
|
Peak Throughput (Theoretical)
|
1200 Mbps
|
|
MIMO
|
Single 2×2
|
|
Security
|
WPA2/3 Personal
WPA2/3 Transitional WPA2 Enterprise |
|
Clients
|
Up to 32 maximum
|
|
SSID
|
3
|
|
Output Power
|
21 dBm per chain
|
|
Frequency
|
2.4/5 GHz
|
|
RF Connectors
|
SMA (Reverse Polarity)
|
|
ENVIRONMENTAL
|
|
|---|---|
|
Operating Temperature
|
-40°C to +75°C / -40°F to +167°F
-30°C to +70°C / -22°F to +158°F (Wi-Fi variant) |
|
Storage Temperature
|
-40°C to +85°C / -40°F to +185°F
|
|
Humidity
|
95% RH @ 60°C
|
|
Military Specification
|
MIL-STD-810H (Shock, Vibration, Thermal Shock, Humidity)
|
|
IP Rating
|
IP64
|
|
INDUSTRY CERTIFICATIONS
|
|
|---|---|
|
Safety
|
IECEE Certification Bodies Scheme (CB Scheme)
|
|
Vehicle Usage
|
E-Mark1 (UN ECE Regulation 10.05), ISO7637-2, SAE J1455 (Shock, Vibration, Electrical)
|
|
Environmental Directives
|
RoHS2, REACH, WEEE, Prop 65
|
|
Hazardous Environments
|
Class 1 Div 2– Ambient temperatures of -30°C to +60°C
IECEx2 & ATEX2 |
|
Rail Usage
|
EN50155/EN45545 (Rolling Stock)
|
1 TAA Part Numbers do not have the E-Mark certification
2TAA Part Numbers do not have IECEx/ATEX certification
|
POWER
|
|
|---|---|
|
Input Voltage
|
7 to 36 VDC
Redundant power input via USB-C (45W) |
|
Power Consumption
|
Idle Power: 3.5W (290 mA @ 12VDC) – Serial/Ethernet variant
Standby Mode Power: 55 mW (4.6 mA @ 12 VDC) Triggered on low voltage, I/O or periodic timer |
|
Power Modes
|
7 to 36 VDC: Can switch to redundant power input via USB-C (45W) |
|
NETWORK AND ROUTING
|
|
|---|---|
|
Throughput
|
800 Mbps Firewall TCP throughput
|
|
Features
|
Semtech Cognitive Wireless
IPv4 and IPv6 Routing Network Address Translation (NAT) Port Forwarding DHCP Server IP Passthrough LAN Segmentation IPv4 Passthrough and IPv6 Prefix Extension WAN/LAN Connection Policy Management Policy-Based Routing Configurable MTU size Static Routing WAN Ethernet |
|
QoS
|
Application/Traffic Priority Queuing
|
|
WAN Monitors
|
Connection Failure Recovery
|
|
SECURITY
|
|
|---|---|
|
AAA
|
Wi-Fi 802.1x/Radius authentication
|
|
Firewall
|
Stateful firewall with port forwarding, DMZ
|
|
WLAN Encryption
|
WPA2/3 Personal
WPA2/3 Transitional WPA2 Enterprise |
|
Firmware Update
|
Secure Firmware Update
|
|
LAN (ETHERNET/USB)
|
|
|---|---|
|
|
USB to Ethernet
|
|
VPN
|
|
|---|---|
|
Throughput
|
175 Mbps IPSec VPN TCP throughput
|
|
Features
|
Integrates with VPN servers with IPsec protocols with IKEv1/IKEv2 FIPS 140-2 Level 1 compliance
|
|
Encryption
|
AES128/AES192/AES256
|
|
Hashing
|
SHA256/SHA384/SHA512
|
|
Key Exchange
|
DHGroup14/15/16/17/18/19/20/21
|
|
|
LAN to LAN and Host to LAN
Up to 10 concurrent tunnels per link MOBIKE protocol IP compression Full/Split Tunnel Dead Peer Detection (DPD) |
|
ROUTER MANAGEMENT INTERFACES
|
|
|---|---|
|
|
ALMS
Local web user interface REST API (Beta) licensed via ALMS |
|
EDGE COMPUTING
|
|
|---|---|
|
|
Support for Edge Compute Docker Containerized Applications licensed via ALMS
|
|
RAM1,2
|
1.2 GB
|
|
Storage (Flash)1
|
750 MB
|
|
CPU
|
Quad Core Arm A53 64 bit
|
|
|
1 Approximation available to containers (not device total)
2 Depends on other enabled features |
|
AIRLINK Complete (5 years included with router purchase)
|
|
|---|---|
|
Support
|
24/7 technical support*
|
|
Hardware Warranty
|
1-year standard hardware warranty
Extended hardware warranty up to 5 years with current subscription** |
|
Device Management
|
AirLink Management Service (ALMS)*
|
|
Software Updates
|
Unrestricted critical firmware updates through at least December 31st, 2029
|
*With current AirLink Complete subscription
**Full warranty terms are available at www.sierrawireless.com/end-user-warranty
|
AirLink Premium (optional upgrade)
Includes all AirLink Complete features* and adds: |
|
|---|---|
|

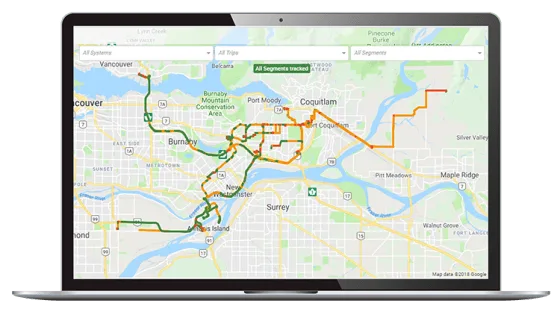

Advanced Mobility Reporting
|
Coverage and fleet reporting*
|
|
Advance Replacement
|
Same-day shipping for in-warranty router replacements*
|
*With current AirLink Premium subscription
|
RELIABILITY
|
|
|---|---|
|
MTBF
|
1105099 XR60 Dual Ethernet: 264010 hours (30.13 years) *Ground Benign, 25°C |
|
ACCESSORIES
|
|
|---|---|
|
In The Box
|
XR60, DC Power Cable, Quick Start Guide, AirLink Complete Leaflet
|
|
Other Accessories (sold separately)
|
6001503 AC Adapter
6001502 Spare DC Power Cable 6001529 DIN Rail Bracket 6001410 RJ45 to Single DB9 6001409 RJ45 to Dual DB9 For Antenna options visit: here |
|
DIMENSIONS
|
|
|---|---|
|
Size
|
118 x 39 x 98 mm (108 mm including SMA connectors)
4.6 x 1.5 x 3.9 in (4.2 in including SMA connectors) Same bolt pattern as RV |
|
Weight
|
522 g / 1.15 lb with Wi-Fi
|
*For carrier specific band support please refer to the hardware user guide.
