BYOND R900 Rugged Mobile 4G Case – Internet On the Go
Digital Navigator BYOND 900 with Cradlepoint R900 Mobile Internet Case
Cradlepoint IBR900 in a portable all-in-one hard case, including cellular 4G and Wi-Fi antenna and offers several valuable benefits, especially in situations where reliable and mobile connectivity is essential. Boost your connection with the IBR900 and relax knowing you have a ruggedized internet router that’s up for a challenge. Connect your life where once it was impossible.
To maximize performance, pair the IBR900 case with one of our flexible data plans:
✔ 100GB at 100Mbps – $55/month
✔ Unlimited Data at 100Mbps (Best Value) – $199/month
✔ Unlimited Data at 200Mbps – $249/month
Get the speed, reliability, and flexibility you need—only from Digital Navigator.

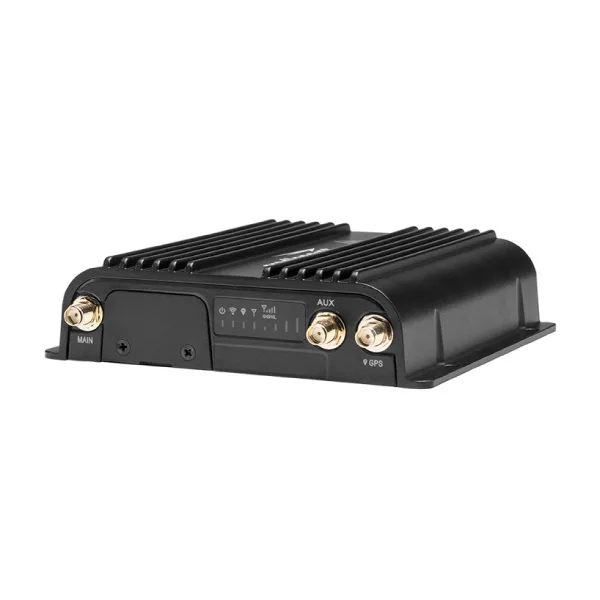

The Cradlepoint IBR900 is a 4gLTE high-performance, ruggedized router designed for mobile and IoT applications.
IBR900
Using a Cradlepoint IBR900 over a MiFi device offers several advantages, especially in more demanding or specialized applications. Here are some key benefits:
Performance and Reliability:
Enhanced Connectivity:
The IBR900 supports advanced LTE and LTE-Advanced technologies, providing faster and more reliable internet connections compared to most MiFi devices.
Multiple Antenna Support:
The IBR900 supports external high-gain antennas for improved signal strength and coverage, which is typically not an option with MiFi devices.
Network Management:
Centralized Management:
The IBR900 can be managed centrally through Cradlepoint’s NetCloud, allowing for remote monitoring, configuration, and troubleshooting of the device and the entire network.
Advanced Networking Features:
It includes advanced features like load balancing, failover, and traffic shaping, which are usually not available in MiFi devices.
Security:
Robust Security Features:
The IBR900 includes enterprise-grade security features such as a firewall, VPN, IPS/IDS, and secure Wi-Fi encryption, offering better protection against cyber threats. PCI Compliance: It is designed to meet PCI standards, making it suitable for secure transactions and sensitive data handling.
Durability and Ruggedness:
Rugged Design:
The IBR900 is built to withstand harsh environments and is ideal for use in vehicles, industrial settings, and outdoor locations. It meets military and IP54 standards for durability.
Extended Temperature Range:
It can operate in a wider temperature range compared to most MiFi devices, making it suitable for extreme conditions.
Connectivity Options:
Multiple LAN/WAN Ports:
The IBR900 provides multiple Ethernet ports for wired connections, allowing for greater flexibility in connecting various devices and network segments.
Dual-SIM Capability:
It supports dual SIM cards for network redundancy and failover, ensuring continuous connectivity by switching between carriers as needed. Wi-Fi Support: Offers dual-band Wi-Fi (2.4GHz and 5GHz) with advanced features like Wi-Fi as WAN, allowing it to use available Wi-Fi networks as a secondary WAN connection.
Advanced Features for Specific Applications:
GPS and Telematics:
Built-in GPS for location tracking and telematics data is beneficial for fleet management and other mobile applications.
IoT and M2M Support:
Designed to support IoT and machine-to-machine applications with features like GPIO, serial ports, and the ability to run edge computing tasks. Power Options:
Multiple Power Sources:
The IBR900 can be powered via various methods, including DC power, AC power, and Power over Ethernet (PoE), offering flexibility in deployment scenarios.
Battery Backup:
It supports optional battery backup solutions to maintain connectivity during power outages.
Hardware Specs
The following features are delivered through the hardware.
WAN:
— Dual-modem capable with optional COR Extensibility Dock
— Embedded 1200M LTE Advanced Pro modem (with DC-HSPA+ failover), delivering 1 Gbps**
— Embedded 600M LTE Advanced 600 Mbps modem (with DC-HSPA+ failover)
— Two LAN/WAN switchable 10/100/1000 Gigabit Ethernet ports – one default WAN (cable/DSL/T1/satellite/Metro Ethernet)
— WiFi-as-WAN, Metro WiFi; 2×2 MIMO “N” 2.4 GHz or 5 GHz; 802.11 a/b/g/n/ac wave 2 (IBR900 only)
LAN:
— Dual-band, dual-concurrent WiFi; 802.11 a/b/g/n/ac wave 2 (IBR900 only)
— Two LAN/WAN switchable 10/100/1000 Gigabit Ethernet ports – one default LAN
— Serial console support for Out-of-Band Management of a connected device
Ports:
— 4-Wire power/GPIO
— Add more GPIO ports with optional 9-wire power/GPIO cable or COR Extensibility Dock with 2×10-wire power/GPIO cable
— USB 2.0
— Two Ethernet LAN/WAN
— Two cellular antenna connectors (SMA)
— One active GPS antenna connector (SMA)
— Two WiFi antenna connectors (RP-SMA)
— 15-pin dock port for COR Extensibility Dock, 9-wire GPIO cable, or COR Extensibility Port to Serial Cable
Temperature:
— -30 °C to 70 °C (-22 °F to 158 °F) operating with optional* 9-wire power and GPIO cable (Part #170680-000)
— -30 °C to 70 °C (-22 °F to 158 °F) operating with optional extended temperature AC power supply (Part #170648-000; see this
page for line cord details)
— -20 °C to 60 °C (-4 °F to 140 °F) operating with included† standard AC power supply
— -40 °C to 85 °C (-40 °F to 185 °F) storage
* Included with “-NPS” version, † – not included with “-NPS” version
Humidity (non-condensing):
— 5% to 95% operating
— 5% to 95% storage
Power:
— DC input steady state voltage range: 9–33 VDC (requires in-line fuse for vehicle installations)
— For 9–24 VDC installations, use a 3 A fuse
— For > 24 VDC installations, use a 2.5 A fuse
— Reverse polarity and transient voltage protection per ISO 7637-2
— Ignition sensing (automatic ON and time-delay OFF)
— Power consumption:
— Idle: 4W
— LTE Tx/Tx: 6.25W
— WiFi Tx/Rx: 9W
— 12 VDC / 2 A adapter recommended
WiFi Power:
— 2.4 GHz: 18 dBm conducted
— 5 GHz VHT20: 17.5 dBm conducted
— 5 GHz VHT40: 17 dBm conducted
— 5 GHz VHT80: 16.5 dBm conducted
Size: 4.6 × 4.5 × 1.2 in (118 × 113.5 × 29.3 mm)
Weight: 14 oz (400 g)
Certifications:
— WiFi Alliance (IBR900 only) – 802.11a/b/g/n/ac wave 2 certified
— Safety: UL/CUL, CB Scheme, EN60950-1
— Hazardous Locations: Class1, Div 2. IBR900-600M-NA only.
— Shock/Vibration/Humidity: Compliant with MIL STD 810G and SAEJ1455
— Ingress Protection: Compliant with IP54 (includes protection from dust and splashing water)
— Materials: WEEE, RoHS, RoHS-2, California Prop 65
— Telecom: PTCRB/CTIA, GCF-CC
— Regulatory Models: S5A643A, S5A644A, S5A648A, S5A701A, S5A706A, S5A843A, S5A848A
— FIPS 140-2 Inside
GPS:
— GPS Protocols: TAIP and NMEA 0183 V3.0
— Satellite channels: Maximum 55 channels, simultaneous tracking
— Concurrent standalone GPS, GLONASS, BeiDou and Galileo
— 1 Hz refresh rate
— Accuracy:
— < 2 m: 50%
— < 5 m: 90%
— Horizontal: < 2 m (50%); < 5 m (90%)
—
Case Specs
Protective, Waterproof & Shockproof
Outer: 13.37″ x 11.62″ x 6″ Inner: 11.81″ x 8.87″ x 5.18″
Waterproof protection for up to 1 meter fully submerged with a rubber gasket lining.
Lockable Fittings TSA Approved.
Stackable Design
Pressure equalization valve
12V 3A Power Supply Adapter
Waterproof GPS Active Antenna 28dB Gain, 3-5VDC
120mm Silent Green LED Case Fan
125 Volt 15 Amp Flanged Inlet, Power Inlet Socket with Waterproof Cap
2 x RJ45 Cable Connectors, with Shielding Cable Coupler-CAT5E
1 x Panorama 600-6000MHz Desk Mount 2×2 MiMo 4G/5G Antenna
2 x Dual Band Wi-Fi 2.4GHz 5GHz 5.8GHz 6dBi MIMO RP-SMA Male Antenna
VELCRO Brand Heavy Duty Fasteners retain components for service and maintenance ease.
ACCEPTS OTHER CELLULAR MODEM PRODUCTS LIKE DIGI, SIERRA WIRELESS, PEPWAVE, etc.
Cellular vs. Starlink
Ease of Use with Existing Technology:
Cradlepoint utilizes well-established cellular networks, which means the technology is mature and widely supported. No apps are needed. One button activation is all there is. SSID and password is on the case’s handle tag.
Instant Service:
Unlike Starlink, which may have wait times for equipment and activation, cellular service can be activated quickly as long as there some coverage. Our cases arrive with the sims installed and activated. They work right out of the box. This is a significant advantage for users who need internet asap.
Plan Flexibility:
All of our Verizon data plans are month to month and can be changed at any time. Customers can also opt to use their own carrier and data plans if they wish.
Network Reliability:
Relying on established cellular towers can offer more consistent service in certain areas compared to the relatively new and expanding satellite network of Starlink, which might experience initial teething problems like signal intermittency in extreme weather or due to satellite repositioning.
Low Latency:
Compared to most ISP providers, our system has significantly lower latency, with an average latency between 20-30 ms as previously indicated.
Real World Applications
Mobile Office/Worksite Connectivity:
Large Construction Projects:
Provide high-speed internet for project management, collaboration, and remote monitoring.
Corporate Events:
Ensure robust connectivity for outdoor corporate events or conferences.
Emergency Response and Public Safety:
Mobile Command Centers:
Enable high-bandwidth communication and data sharing for emergency management teams.
Search and Rescue Operations:
Support connectivity for UAVs (drones) and other high-tech equipment.
Transportation and Fleet Management:
Connected Vehicles:
Offer reliable internet for passenger Wi-Fi, vehicle diagnostics, and real-time data streaming.
Autonomous Vehicle Operations:
Provide necessary connectivity for testing and deployment of autonomous vehicles.
Field Research and Environmental Monitoring:
Scientific Expeditions:
Support data transmission and communication needs for research teams in remote locations.
Environmental Data Collection:
Enable real-time monitoring and data uploads from field sensors and cameras.
Temporary and Pop-Up Retail:
Major Events:
Support high traffic for point-of-sale systems, customer Wi-Fi, and live streaming during large festivals, fairs, and concerts.
Temporary Business Locations:
Provide reliable internet for pop-up stores and temporary business operations.
Outdoor Recreation and Camping:
RV and Campervan Connectivity:
Offer a robust internet connection for families or groups traveling in RVs.
Remote Campsite Management:
Provide high-speed internet for campsites offering premium services.
Community and Social Services:
Mobile Clinics:
Support telemedicine, electronic health records, and imaging uploads for mobile medical units.
Mobile Learning Centers:
Enable high-speed internet for mobile classrooms or educational outreach programs.
Agriculture and Smart Farming:
IoT Integration:
Support extensive IoT devices for precision agriculture, including real-time data from sensors and automated machinery.
Farm Network Backbone:
Provide a reliable network for large-scale farm operations.
Media and Broadcasting:
Live Broadcasts:
Ensure reliable high-speed connections for live TV and radio broadcasting.
Field Journalism:
Support video uploads, live reporting, and real-time communication for news teams.
Educational Expeditions and Mobile Classrooms:
STEM Field Trips:
Provide high-speed internet for students and teachers on educational trips.
Mobile Digital Learning Labs:
Support e-learning initiatives in remote or underserved communities.
Why MESOPAK 900 Mobile 4G Internet
Ease of Deployment: With everything neatly packed in a portable hard case, the setup process becomes incredibly straightforward. One button operation lets Users quickly deploy the Cradlepoint R900 and its antennas in various locations without the need for complex installations.
High-Performance Connectivity: The Cradlepoint R900 is designed for high-performance networking, supporting fast 4G LTE and potentially 5G connections(with optional extensibility dock). The included antennas are optimized for this router, ensuring strong signal reception and faster data speeds.
Portability and Mobility: The all-in-one hard case makes the setup highly portable, allowing users to carry it to various locations easily. This is especially valuable for individuals or businesses that need connectivity while on the move or in temporary setups.
Rugged Protection: The hard case offers robust protection for the Cradlepoint R900 and its antennas, safeguarding them against physical damage, dust, and moisture. This makes it suitable for use in outdoor, remote, or harsh environments.
Secure Connectivity: The Cradlepoint IBR900 supports various security features, and the hard case can further enhance security with locking mechanisms or other access controls, ensuring a secure and private connection.
Redundancy and Failover: With included antennas, the setup can provide load balancing and failover capabilities. If one connection becomes unreliable, the router can automatically switch to an alternative connection, ensuring uninterrupted internet access.
Temporary Networks and Events: The portable setup is ideal for creating temporary networks during events, disaster response, or construction projects. It enables quick deployment of a reliable network hub without the need for permanent infrastructure.
Emergency Response and Field Work: For emergency response teams, researchers, or fieldworkers, the portable Cradlepoint IBR900 setup with antennas offers reliable connectivity in remote locations for real-time data transmission and communication.
IoT and Remote Monitoring: The setup can support IoT deployments, enabling remote monitoring and data transmission from various devices and sensors.
Remote Surveillance: For surveillance applications, the portable setup provides real-time video streaming and remote access to surveillance cameras, making it valuable for security purposes.
Backup Connectivity: In locations with unreliable or limited internet access, the portable Cradlepoint IBR900 setup can serve as a backup connectivity solution, ensuring continued productivity and communication.
BENEFITS
Robust, dependable Gigabit-Class LTE network platform for first responders and commercial fleets.
Ruggedized for vibration, shock, dust, splash, and humidity.
Mobile SD-WAN for optimized multi-link LTE connectivity
GPS for AVL integration and location tracking to provide current and historic vehicle location.
Dual-modem capability with COR Extensibility Dock for multi-link dependability.
Heatmapping for an LTE signal strength map of all areas a fleet. has driven.
WiFi-as-WAN for data-intensive tasks such as video offload.
We represent the most trusted leading brands in cellular networks and components, find out how we can work with your agency or community.
Stay connected
when you want
where you want.
Get high-speed results with Cradlepoint modems paired with Plume mesh WiFi for optimal performance.
