Ericsson Cradlepoint R1900
Ruggedized 5G router for in-vehicle use

Semtech Airlink XR60 Interfaces

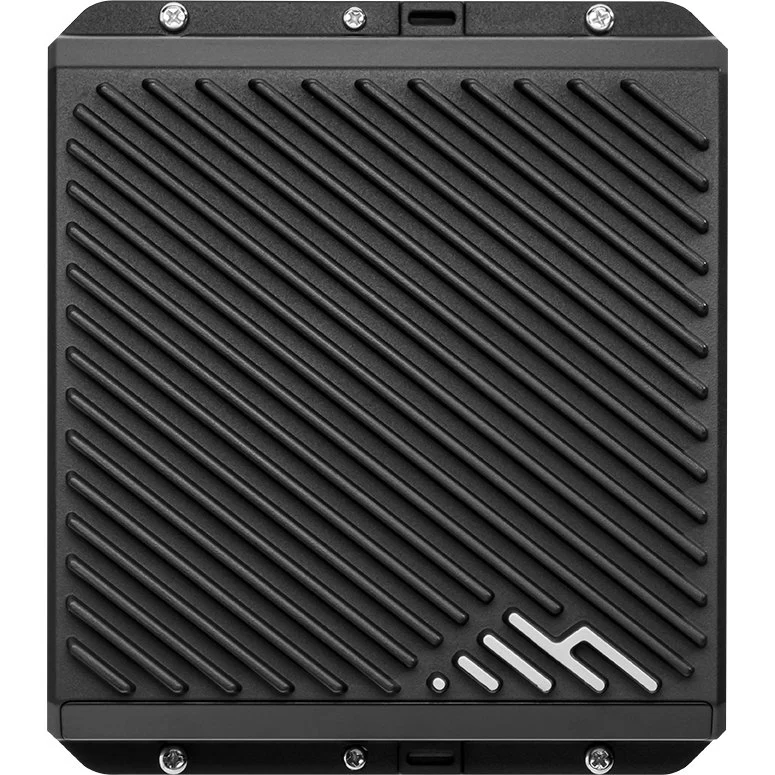

Cradlepoint R1900
r1900 measurements
r1900 Interface description
sma antenna connections
R1900 box

Ericsson Cradlepoint R1900

Ruggedized 5G, SD-WAN, and security appliance for vehicle deployments

The purpose-built router

Ericsson Cradlepoint endpoints provide industry-leading, 5G and Gigabit-Class LTE connectivity as well as Ethernet and Wi-Fi. These purpose-built endpoints are sold with a subscription to Ericsson NetCloud Service for vehicles which provides streamlined configuration and continuous cloud, modem, and router software feature enhancements.

Benefits

  • Deploy the ultimate 5G NR / Cat 20 LTE mobile networking solution
  • Take advantage of Wi-Fi 6 for the best possible connections
  • Integrate into AVL systems with discrete GNSS and dead reckoning
  • Extend your deployment with powerful edge compute capabilities and
  • container support
  • Enable unified edge security with application aware multizone firewalls, IDS/IPS, Internet security, and available FIPS 140-3 Level 1 and available FIPS 140-3 module in process
  • Define policies through centralized cloud-based management for easy deployment at scale
  • Add a second cellular modem for simultaneous dual-carrier connectivity



Experience enterprise-grade 5G performance wherever the mission takes you. The Cradlepoint R1900 is a high-performance, ruggedized mobile router built for vehicles, field operations, and remote environments that demand always-on connectivity.

Powered by Cradlepoint NetCloud, the R1900 delivers secure, fast, and reliable networking with advanced 5G and LTE capabilities. Designed for public safety, transportation, and industrial applications, it provides Gigabit-class throughput, GPS tracking, and seamless WAN failover — all in a compact, durable form factor tested to military and transportation standards.

Key Features

  • 5G + LTE Advanced Pro: Delivers blazing-fast connectivity with automatic carrier fallback.

  • Rugged Design: Built to withstand extreme conditions — vibration, temperature, and moisture.

  • Wi-Fi 6 Performance: Supports the latest Wi-Fi 6 standard for improved range and multi-device handling.

  • Advanced Security: Integrated firewall, VPN, and zero-trust networking via Cradlepoint NetCloud.

  • Edge Computing Ready: Runs container-based apps for on-site data processing and IoT use cases.

  • Flexible Power Options: Ideal for vehicle, mobile, or fixed installations.

Ideal Use Cases

  • Law enforcement and emergency response vehicles

  • Public transportation and commercial fleets

  • Mobile command centers and field offices

  • Industrial IoT and remote site monitoring

  • Secure mobile broadband in rugged environments

CALL
Firewall Throughput: 940 Mbps

Firewall Throughput:
940 Mbps

Firewall Throughput: 940 Mbps

WAN Connectivity:
5G Low/Mid–Band & Cat 20 LTE

Throughput: 940 Mbps

LAN Connectivity:
Wi-Fi 6, GbE, Bluetooth® wireless technology

Firewall Throughput: 940 Mbps

Management:
Ericsson NetCloud

Netcloud remote management software

Cradlepoint NetCloud Manager

Take full control of your network from anywhere with Cradlepoint NetCloud Manager (NCM) — a powerful cloud-based platform that simplifies deployment, management, and security for your Cradlepoint routers and connected devices.

NetCloud Manager provides real-time visibility, centralized configuration, and intelligent security for edge, mobile, and IoT networks. Whether you manage one site or hundreds of field units, NetCloud delivers enterprise-grade performance, uptime, and security without the complexity of traditional networking systems.

Key Features

  • Centralized Cloud Management: Configure, monitor, and update all your Cradlepoint devices from a single dashboard.

  • Zero-Touch Deployment: Automatically push policies and firmware to new devices without manual setup.

  • Real-Time Analytics: Gain insights into data usage, signal quality, and network health across all endpoints.

  • Advanced Security Tools: Built-in VPN, zero-trust frameworks, and threat detection powered by Cradlepoint NetCloud Perimeter.

  • Remote Troubleshooting: Diagnose and resolve issues quickly without on-site visits.

  • Flexible Licensing: Choose plans tailored for mobile, branch, or IoT applications.

Learn More

The following features are delivered through the hardware.

    INTERFACES

    Modem:

    Embedded 5GB NR FR1 low-, mid-band, and 4G LTE Category 20 modem

    • 4 x SMA cellular antenna connectors†

    Ethernet:

    4 x GbE (LAN/WAN switchable)

    PoE:

    Optional RX30 Managed Accessory PoE Switch

    • 4 x PoE 802.3bt Type 3 (up to 60 W per port)
      • 60 W total PoE power budget

    Wi-Fi:

    Dual-radio, dual-band, concurrent operation (2.4 GHz and 5 GHz)

    • 2×2 MU-MIMO 802.11ax Wi-Fi 6 with DFS
    • 574 Mbps (2.4 GHz) & 1,200 Mbps (5 GHz)
    • 2 x RP-SMA Wi-Fi antenna connectors†
    • Global Optimized Wi-Fi & International SDR
    • WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open
    • 802.11k, 802.11v
    • Wi-Fi Alliance Certified

    Bluetooth:

    Embedded Bluetooth Low Energy 5.2

    • Max TX Power: 10 dBM
    • 1 x RP-SMA Bluetooth antenna connector†

    Expansion / Console:

    1 x USB 2.0 Type A (Output: 5 V, 500 mA, 2.5 W)

    1 x DB9 RS-232

    1 x 8-pin GPIO connector

    • 2×4 Molex micro-fit (3 mm locking type)

    Optional Managed Accessories

    • RX30-POE 4-port GbE PoE switch
    • RX30-MC modular modem slot & 4-port GbE switch

    GNSS / GPS:

    1 x SMA GNSS antenna connector†

    GNSS / GPS

    Acquisition:
    (Time to First Fix)

    30 seconds (cold start)

    Protocols:

    • NMEA 0183

    • TAIP

    Constellations:

    GPS, Galileo, GLONASS, BeiDou (concurrent reception)

    Accuracy:

    Autonomous 1 meter

    Update Rate:

    1 Hz (once per second)

    Sensitivity:
    • Acquisition: -147 dBm
    • Tracking: – 165 dBm
    • Reacquisition: -159 dBm

    Frequencies:

    L1, L5 (1559–1606 MHz)

    Power:
    • Voltage Supply: 3.1-3.8 V
    • Max Current: 30 mA

    ENVIRONMENTAL

    Temperature:
    • Operating: -30 °C to 75 °C (-22 °F to 167 °F)††
    • Storage: -40 °C to 85 °C (-40 °F to 185 °F)

    Humidity:
    • Operating: 5% to 95%
    • Storage: 5% to 95%

    Ingress Protection:

    IP64 (dust tight and splashing water)

    POWER

    Required:

    DC input steady state voltage range: 9–36 VDC (requires in-line fuse for vehicle installations)

    • For 9–24 VDC installations, use a 3 A fuse
    • For > 24 VDC installations, use a 2.5 A fuse
    • Connector type: 4-pin 2×2 Molex micro-fit



    For light rail applications: 24 VDC nominal

    Features:
    • ISO 7637-2 reverse polarity and transient voltage protection
    • Ignition sensing (automatic ON & time-delay OFF)

    Consumption:

    • Sleep: 15 mW

    • Idle: 11 W

    • Typical: 19 W

    • Heavy: 22 W

    PHYSICAL

    Size:

    172 x 148 x 41 mm (6.77 x 5.82 x  1.61 in)

    Weight:

    0.98 kg (2.15 lb)

    RELIABILITY

    Calculated MTBF:

    340,644 hours (Telcordia SR332 at 25 °C)

    CERTIFICATIONS

    Safety:
    • UL/cUL
    • CB Scheme
    • EN 60950-1
    • EN 62368-1

    Vehicle:
    • E-Mark
    • SAE J1455

    Rail:
    • EN 45545-2:2020 HL3
    • EN 50121-3-2 (Power Surge 0.5 & 1 kV Criteria A; 1.5 kV Criteria C)
    • EN 50155 Class S1

    Environmental Compliance:
    • WEEE
    • RoHS
    • REACH
    • California Prop 65

    Security:

    FIPS 140-3 Level 1 Module in Process (R1900 FIPS models only)

    Shock/Vibration/Humidity:

    MIL-STD-810G, Section 2.2.2, Procedure 1 (Shock, Vibration)

    North American Fire Safety:

    NFPA 130

    Flame Smoke Toxicity Test:

    BSS 7239

    Hazardous Locations:

    Class I Div 2

    EDGE COMPUTING

    CPU:

    Quad-core ARMv8 64-bit

    Memory:

    Up to 1.8 GB

    See Adjusting Memory Resources for NetCloud Container Orchestrator for more information.

    Flash Storage:

    Up to 6 GB

    See Adjusting Memory Resources for NetCloud Container Orchestrator for more information.

    Applications:

    Docker containerized applications

    CLOUD SERVICES

    Service Plans:

    Ericsson NetCloud Service for Mobile Performance

    Service Add-Ons:

    NetCloud Exchange, Ericsson NetCloud Advanced

    Support:

    Ericsson NetCloud packages include support for the full subscription term.

    Warranty:

    All Ericsson Cradlepoint hardware products are covered by a limited lifetime warranty for as long as they have a subscription license to an active Ericsson NetCloud Service plan.

    Device Management:

    NetCloud Manager for the full subscription term.

    Software Updates:

    NetCloud Manager for the full subscription term.

    PERFORMANCE†††

    Stateful Firewall:

    940 Mbps

    IPS/Application Aware Services:

    940 Mbps

    Point-to-Point IPsec VPN:

    400 Mbps

    Concurrent VPN Tunnels:

    20

    Concurrent Sessions (TCP):

    32,000

    Typical Client Count:

    100

    Layer 2 / Layer 3 VLANs:

    Up to 64

    LEDs

    Refer to the R1900 Quick Start Guide.

    †NOTE: All antenna interfaces require cabled out external antennas and are not compatible with direct-attached antennas.

    ††Wi-Fi and cellular performance may degrade, the RX30 managed accessory is not supported, and the 5G cellular modem might fallback to LTE connectivity when operating above 70 °C.

    †††Performance testing was conducted based on requirements as defined in RFC2544 using fixed-frame 1518-byte packets. Throughput results reflect unidirectional UDP traffic with less than 1% packet loss as tested with wired connections. Results do not reflect performance of the cellular wireless operator networks.
